EVOc  Commercial

From $3,695

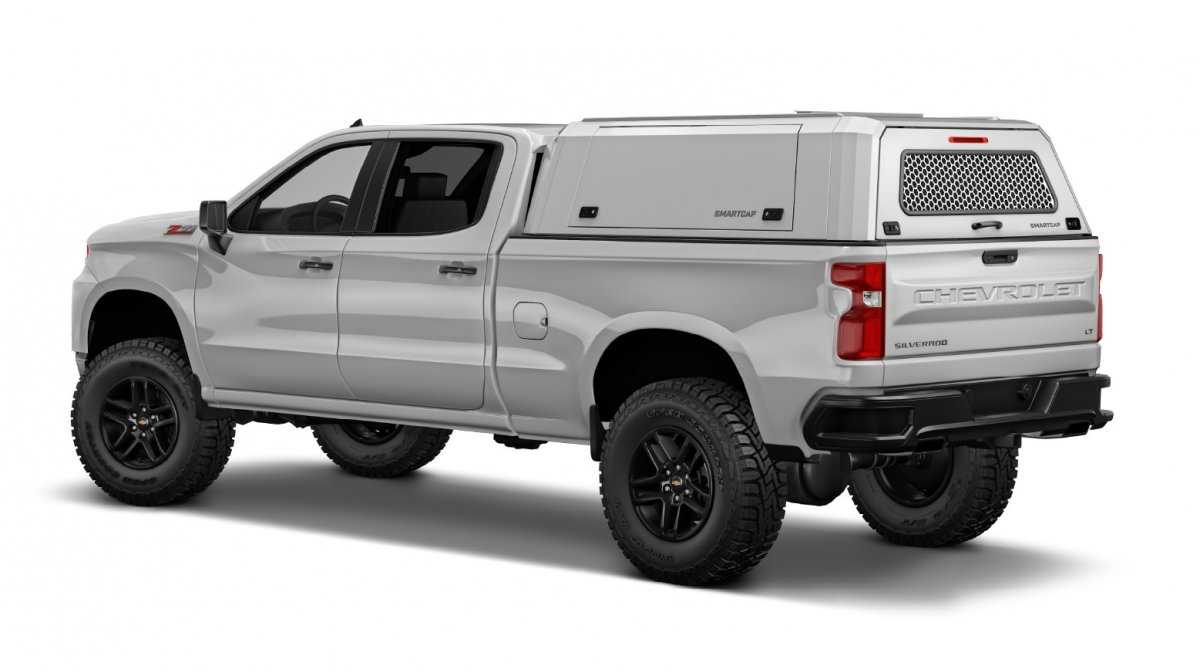

Silverado 1500 Smart Cap EV Oc

Commercial grade, configured by you.

Manufactured using automotive-grade, tough-as-nails stainless steel, the SmartCap EVOc Commercial is a brilliantly engineered truck bed cap system. The steel side doors and optional Security Screen provide incredible protection for your truck bed. Outfit your EVOc with SmartCap Components, to build the ultimate commercial truck based on your cargo management needs. Nice work!


Features Include: Integrated Roof Rails, Positive Pressure Air Vent, Front Rubber Mounted Fixed Window, Double-Walled Solid Gullwing Side Doors, Rear Half-Door w/Rubber Mounted Fixed Window, Third Brake Light* and OE White Automotive Paint.

WEATHER PROOF

STAINLESS STEEL

770 LBS STRONG

EASY REMOVAL

3 YEAR WARRANTY

EVOC COMMERCIAL
Application & Bed Length
Side Height, Side Length, Front Width, Rear Width (in.)
Packaged and Assembled Weight (lbs.)
19-23 Silverado/Sierra 1500 – 5'8" EC0100-WH
H - 20.87, L - 72.24, FW - 70.47, RW - 67.52
A - 236.7, P - 326.8
19-23 Silverado/Sierra 1500 – 6'5" EC0101-WH
H - 20.87, L - 80.12, FW - 70.47, RW - 67.52
A - 250.9, P - 350.1 (Approx.)
20-23 Silverado/Sierra 2500/3500 – 6'9" EC0104-WH
H - 22.83, L - 83.66, FW - 72.24, RW - 69.69
A - 272.2, P - 383.1 (Approx.)
15-22 Colorado/Canyon Crew Cab – 5' EC0105-WH
H - 19.69, L - 63.19, FW - 63.39, RW - 61.02
A - 198.5, P - 287.1 (Approx.)
15-22 Colorado/Canyon Crew or Extended Cab – 6' EC0106-WH
H - 19.69, L - 75.98, FW - 63.39, RW - 61.02
A - 214.5, P - 305.6 (Approx.)
21-23 F-150 – 5'5" EC0306-WH
H - 21.65, L - 71.10, FW - 71.41, RW - 67.44
A - 236.7, P - 326.8 (Approx.)
21-23 F-150 – 6'5" EC0307-WH
H - 21.65, L - 82.68, FW - 71.06, RW - 66.93
A - 269.7, P - 363.4
15-20 F-150 – 5'5" EC0300-WH
H - 21.65, L - 67.70, FW - 71.06, RW - 67.52
A - 236.7, P - 326.8 (Approx.)
15-20 F-150 –6'5" EC0301-WH
H - 21.65, L - 80.71, FW - 71.06, RW - 67.52
A - 269.7, P - 363.4 (Approx.)
17-23 F-250/350 –6'8" EC0302-WH
H - 23.62, L - 83.86, FW - 73.82, RW - 70.08
A - 272.2, P - 383.1 (Approx.)
19-22 Ranger Crew Cab – 5' EC0303-WH
H - 19.69, L - 60.24, FW - 62.99, RW - 61.42
A - 198.5, P - 287.1 (Approx.)
19-22 Ranger Extended Cab – 6' EC0304-WH
H - 19.69, L - 72.05, FW - 62.99, RW - 61.42
A - 214.5, P - 305.6 (Approx.)
20-23 Gladiator EC0600-WH
H - 21.65, L - 63.78, FW - 60.83, RW - 60.83
A - 198.5, P - 287.1
19-23 RAM 1500 DT – 5'7" EC1000-WH
H - 23.03, L - 69.88, FW - 69.88, RW -67.32
A - 222.1, P - 311.2
19-23 RAM 1500 DT – 6'4" EC1001-WH
H - 23.03, L - 78.84, FW - 69.88, RW -67.32
A - 250.9, P - 350.1 (Approx.)
09-18 RAM 1500 DS – 5'7" EC1003-WH
H - 21.65, L - 69.88, FW - 71.14, RW - 67.20
A - 222, P - 311.2
09-18 RAM 1500 DS – 6'4" EC1004-WH
H - 22.99, L - 78.78, FW - 71.14, RW - 67.20
A - 250.9, P - 350.1
20-23 RAM 2500/3500 – 6'4" EC1002-WH
H - 24.21, L - 78.84, FW -71.26, RW - 67.32
A - 268.3, P - 375.1 (Approx.)
09-19 RAM 2500/3500 – 6'4" EC1002-WH
H - 24.21, L - 78.84, FW -71.26, RW - 67.32
A - 268.3, P - 375.1 (Approx.)
22-23 Tundra - 5'5" EC1310-WH
H - 20.87, L - 71.10, FW - 69.88, RW - 67.91
A - 236.7, P - 326.8 (Approx.)
22-23 Tundra - 6'5" EC1311-WH
H - 20.87, L - 82.91, FW - 69.88, RW - 67.91
A - 226.1, P - 318.9 (Approx.)
07-21 Tundra – 5'5" EC1300-WH
H - 20.87, L - 71.10, FW - 69.88, RW - 67.91
A - 236.7, P - 326.8 (Approx.)
07-21 Tundra – 6'5" EC1301-WH
H - 20.87, L - 82.91, FW - 69.88, RW - 67.91
A - 226.1, P - 318.9 (Approx.)
16-23 Tacoma – 5' EC1302-WH
H - 19.69, L - 63.19, FW - 63.39, RW - 61.02
A - 198.5, P - 287.1 (Approx.)
16-23 Tacoma – 6' EC1303-WH
H - 19.69, L - 77.36, FW - 63.39, RW - 61.02
A - 214.5, P - 305.6 (Approx.)

AVAILABLE

Applications

IMPORTANT WARNING: When ordering Caps and Components for vehicles still under the manufacturer’s warranty, it is the vehicle owner’s responsibility to ensure that the warranty will not be adversely affected by the installation of these parts. If in doubt, please consult your owner’s manual, or contact your local servicing dealership or the vehicle manufacturer before ordering.

YEAR

2019-23

PART NO.

EC0100-WH

MODEL

Silverado/Sierra 1500 (New Orders Avail. NOV '23)

BED

Short: 5' 8"

PRICE

$3,895

YEAR

2019-23

PART NO.

EC0101-WH

MODEL

Silverado/Sierra 1500 (New Body Style) (New Order Avail. OCT '23)

BED

Standard: 6' 5"

PRICE

$3,895

YEAR

2020-23

PART NO.

EC0104-WH

MODEL

Silverado/Sierra 2500/3500 HD

BED

Standard: 6' 9"

PRICE

$3,895

YEAR

2015-22

PART NO.

EC0105-WH

MODEL

Colorado/Canyon Crew Cab

BED

Short Box: 5'

PRICE

$3,695

YEAR

2015-22

PART NO.

EC0106-WH

MODEL

Colorado/Canyon Crew or Extended Cab

BED

Long Box: 6'

PRICE

$3,695

YEAR

2021-23

PART NO.

EC0307-WH

MODEL

F-150

BED

Standard: 6' 5"

PRICE

$3,895

YEAR

2015-20

PART NO.

EC0300-WH

MODEL

F-150

BED

Short: 5' 5"

PRICE

$3,895

YEAR

2015-20

PART NO.

EC0301-WH

MODEL

F-150

BED

Standard: 6' 5"

PRICE

$3,895

YEAR

2023

PART NO.

EC0312-WH

MODEL

F-250/F-350 Super Duty

BED

Standard: 6' 8"

PRICE

$3,895

YEAR

2017-22

PART NO.

EC0302-WH

MODEL

F-250/F-350 Super Duty (New Orders Avail. OCT '23)

BED

Standard: 6' 8"

PRICE

$3,895

YEAR

2019-23

PART NO.

EC0303-WH

MODEL

Ranger Crew Cab

BED

Short: 5'

PRICE

$3,695

YEAR

2019-23

PART NO.

EC0304-WH

MODEL

Ranger Extended Cab

BED

Standard: 6'

PRICE

$3,695

YEAR

2020-23

PART NO.

EC0600-WH

MODEL

Gladiator

BED

Short: 5'

PRICE

$3,695

YEAR

2019-23

PART NO.

EC1000-WH

MODEL

RAM 1500 (New Body Style)

BED

Short: 5' 7"

PRICE

$3,895

YEAR

2019-23

PART NO.

EC1001-WH

MODEL

RAM 1500 (New Body Style)

BED

Standard: 6' 4"

PRICE

$3,895

YEAR

2009-23

PART NO.

EC1003-WH

MODEL

RAM 1500 (Classic Body Style)

BED

Short: 5' 7"

PRICE

$3,895

YEAR

2009-23

PART NO.

EC1004-WH

MODEL

RAM 1500 (Classic Body Style)

BED

Standard: 6' 4"

PRICE

$3,895

YEAR

2020-23

PART NO.

EC1002-WH

MODEL

RAM 2500/3500 (New Body Style) (New Orders Avail. NOV '23)

BED

Standard: 6' 4"

PRICE

$3,895

YEAR

2009-19

PART NO.

EC1002-WH

MODEL

RAM 2500/3500 (Classic Body Style) (New Orders Avail. NOV '23)

BED

Standard: 6' 4"

PRICE

$3,895

YEAR

2022-23

PART NO.

EC1311-WH

MODEL

Tundra

BED

Standard: 6' 5"

PRICE

$3,895

YEAR

2007-21

PART NO.

EC1300-WH

MODEL

Tundra (New Orders Avail. NOV '23)

BED

Short: 5' 5"

PRICE

$3,895

YEAR

2007-21

PART NO.

EC1301-WH

MODEL

Tundra (New Orders Avail. OCT '23)

BED

Standard: 6' 5"

PRICE

$3,895

YEAR

2016-23

PART NO.

EC1303-WH

MODEL

Tacoma (Gen 3)

BED

Standard: 6'

PRICE

$3,695

Smart Cap Forged Welder

A truck cap as tough as your truck bed.

SmartCap EVOc stands for commercial grade. That means it was forged from tough-as-nails automotive-grade stainless steel. Why shouldn’t your truck cap be as tough as your truck bed? The EVOc Commercial holds up to 330 lbs when moving and a whopping 770 lbs when parked.

*With some applications, SmartCap's load capacity may exceed that of your truck's bed. Please consult your Owner's Manual to avoid damaging your truck or voiding your warranty.

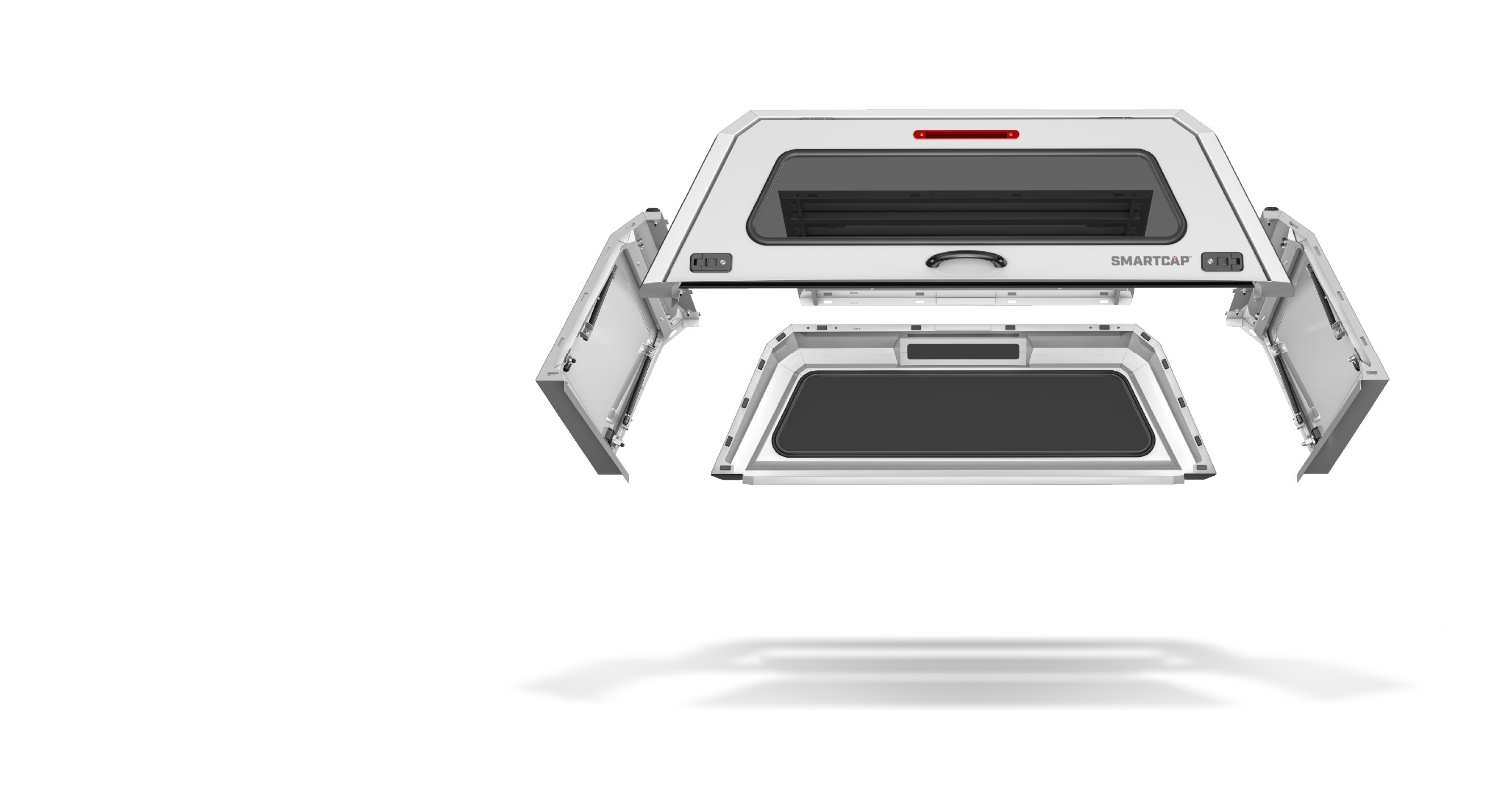

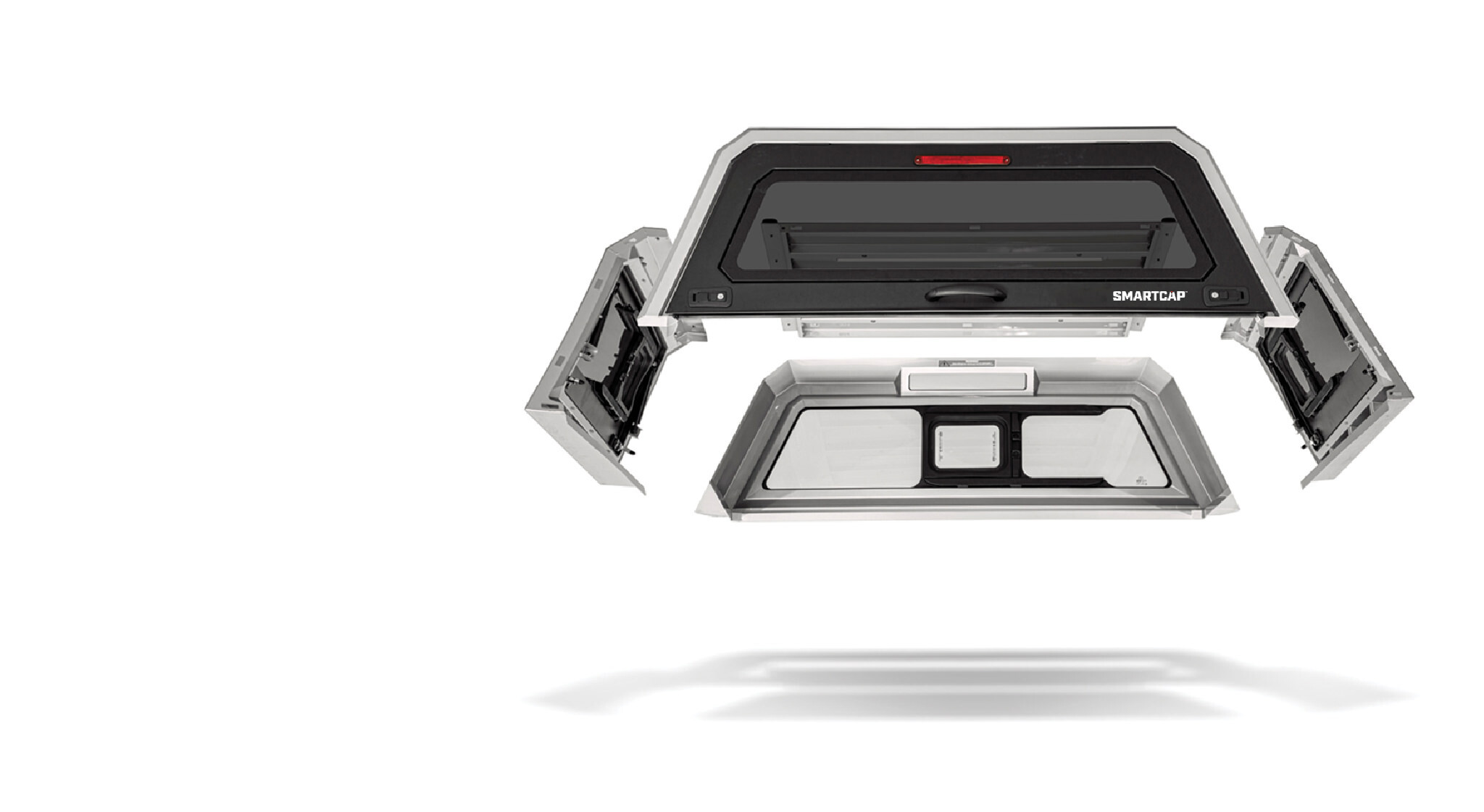

The world's first stainless steel modular truck cap.

SmartCap’s advanced 5-piece modular design is ideal for your commercial or fleet needs. Simply purchase a SmartCap EVOc online and we'll ship it directly to your home or business. Plus, it can be easily installed in under two hours. You’re in business.

Modular Design EV Oc
Rsi smartcap evo C 1 gullwing

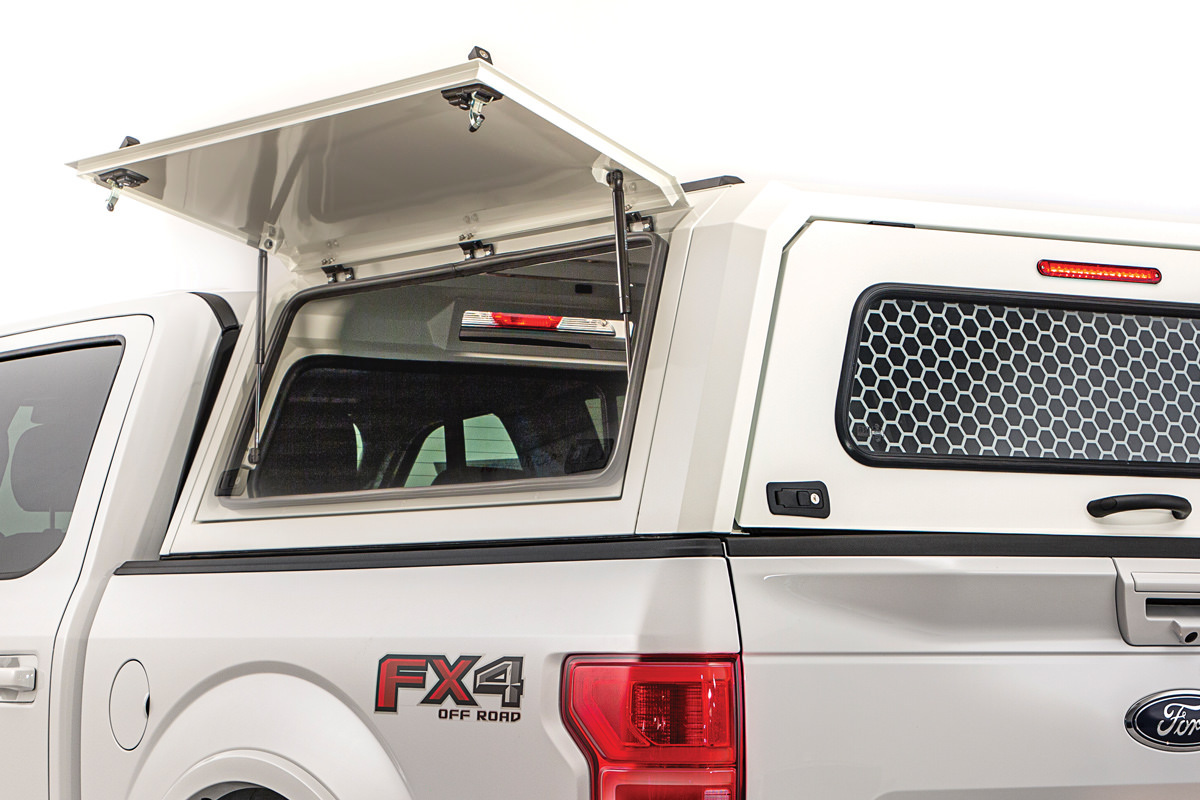

Protection when ya need it—easy access when you don't.

SmartCap’s Gullwing Door openings are approximately 17% taller than most fiberglass caps and provide incredible security for your cargo. Plus, the low-profile latching mechanisms and heavy-duty gas struts enable you to open the door with just one finger.

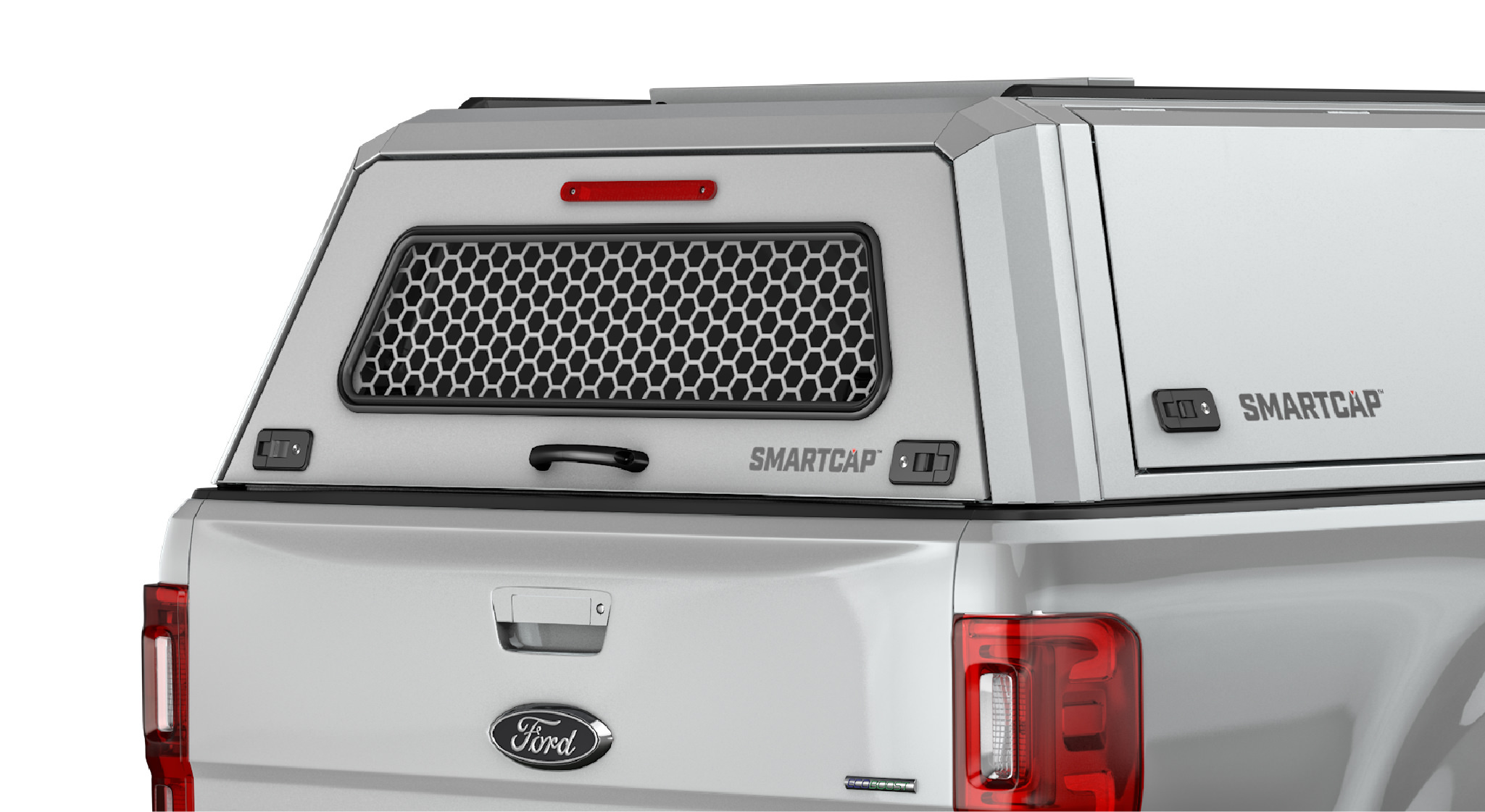

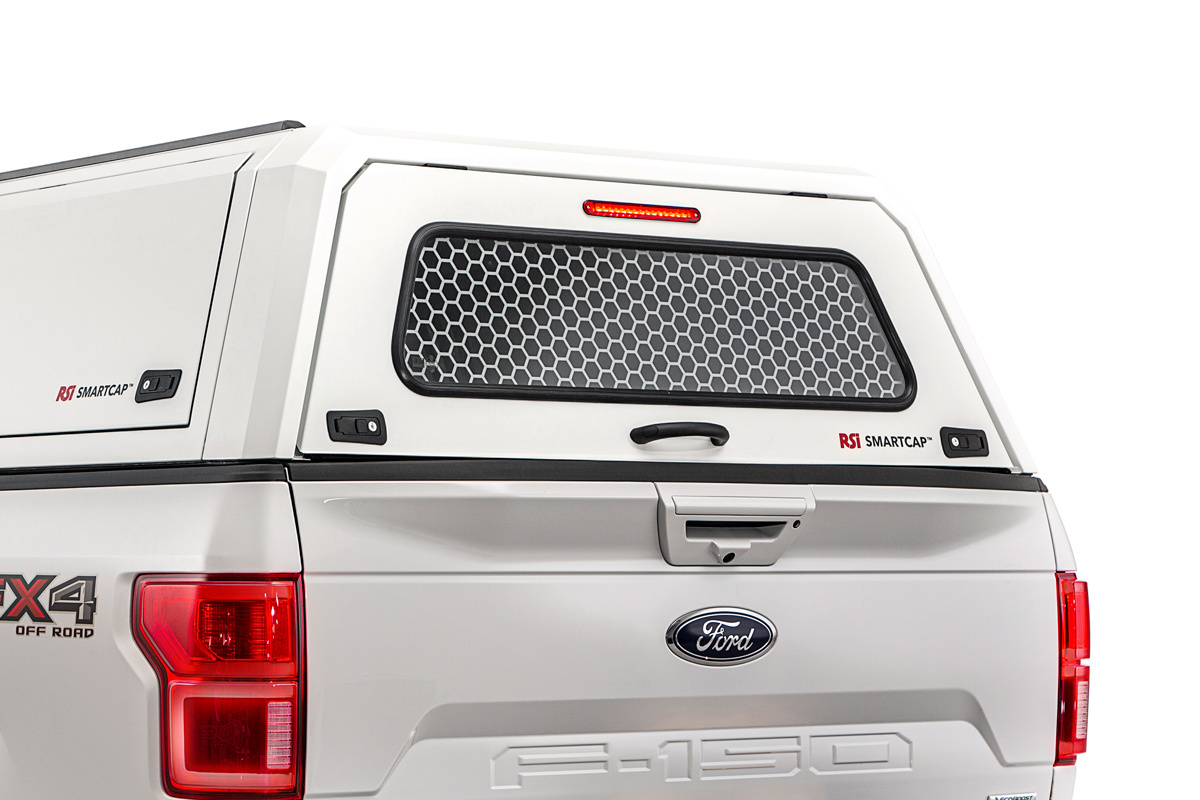

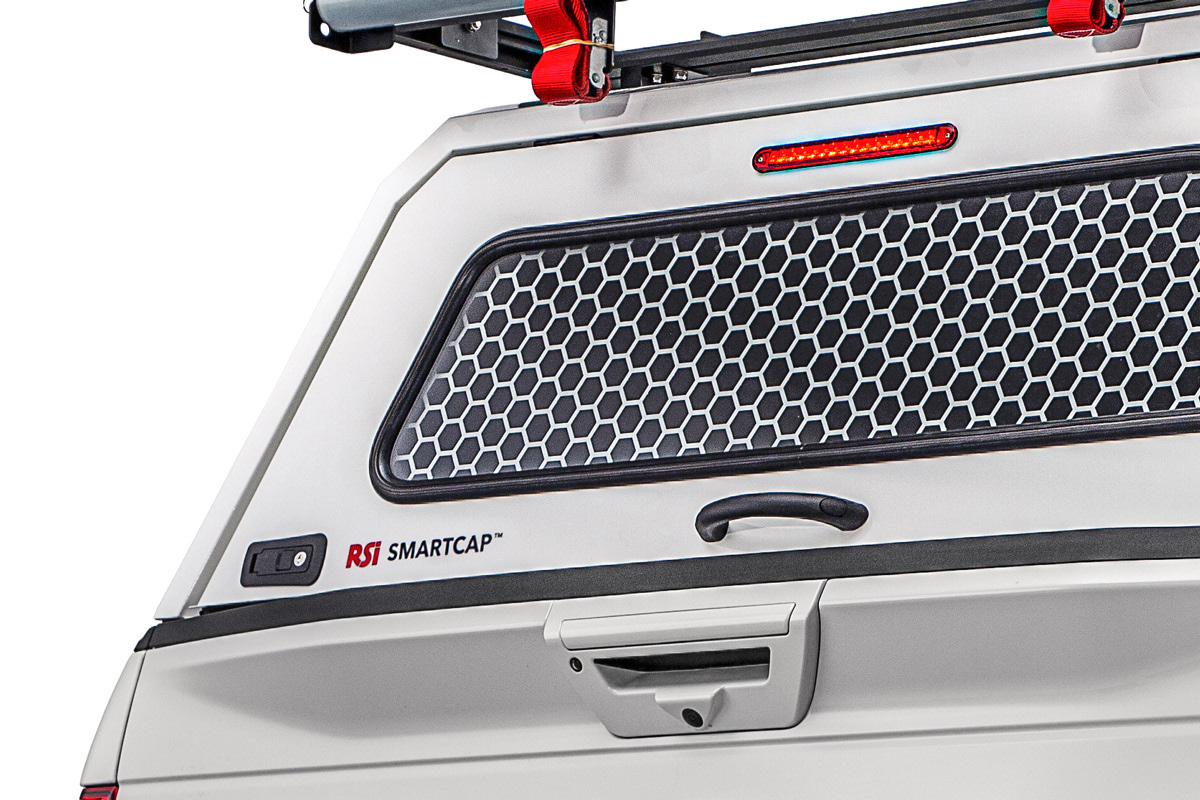

Safe and secure.

When combined with the stainless steel doors, the rear window optional Security Screen mesh adds an extra layer of protection for your SmartCap EVOc. You know, to keep out the riffraff. *Security screen shown in white for photo demonstration purposes only. The actual screen is black.

Smart Cap EV Oc Security Screen

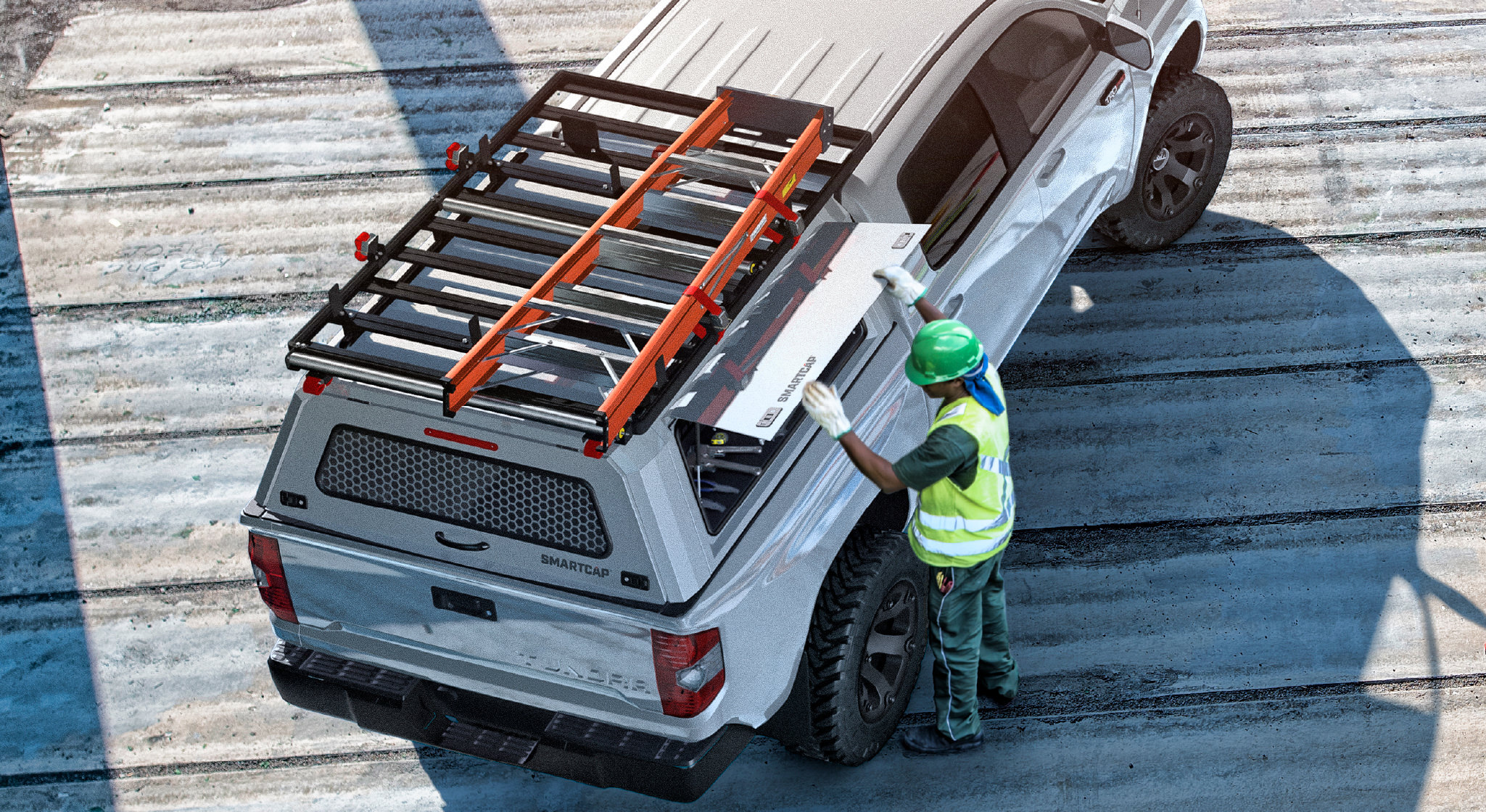

Smart Cap EV Oc Build it how you want to

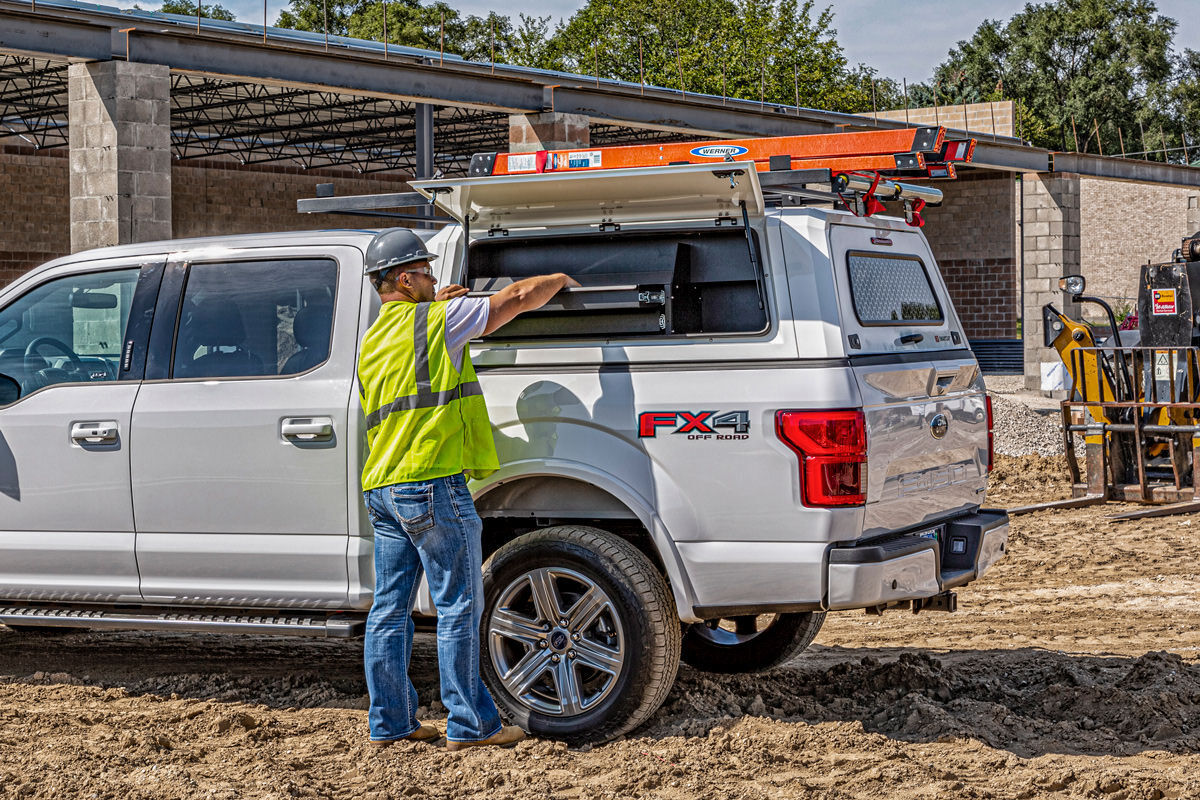

Build it how you want it.

Our SmartCap Components let you build the ultimate commercial truck. From a Drawer-Bin to the Half-Bin or Full-Bin, Load Bars, Roller Rack, and more. Now you can easily organize your commercial truck bed exactly how you want it.

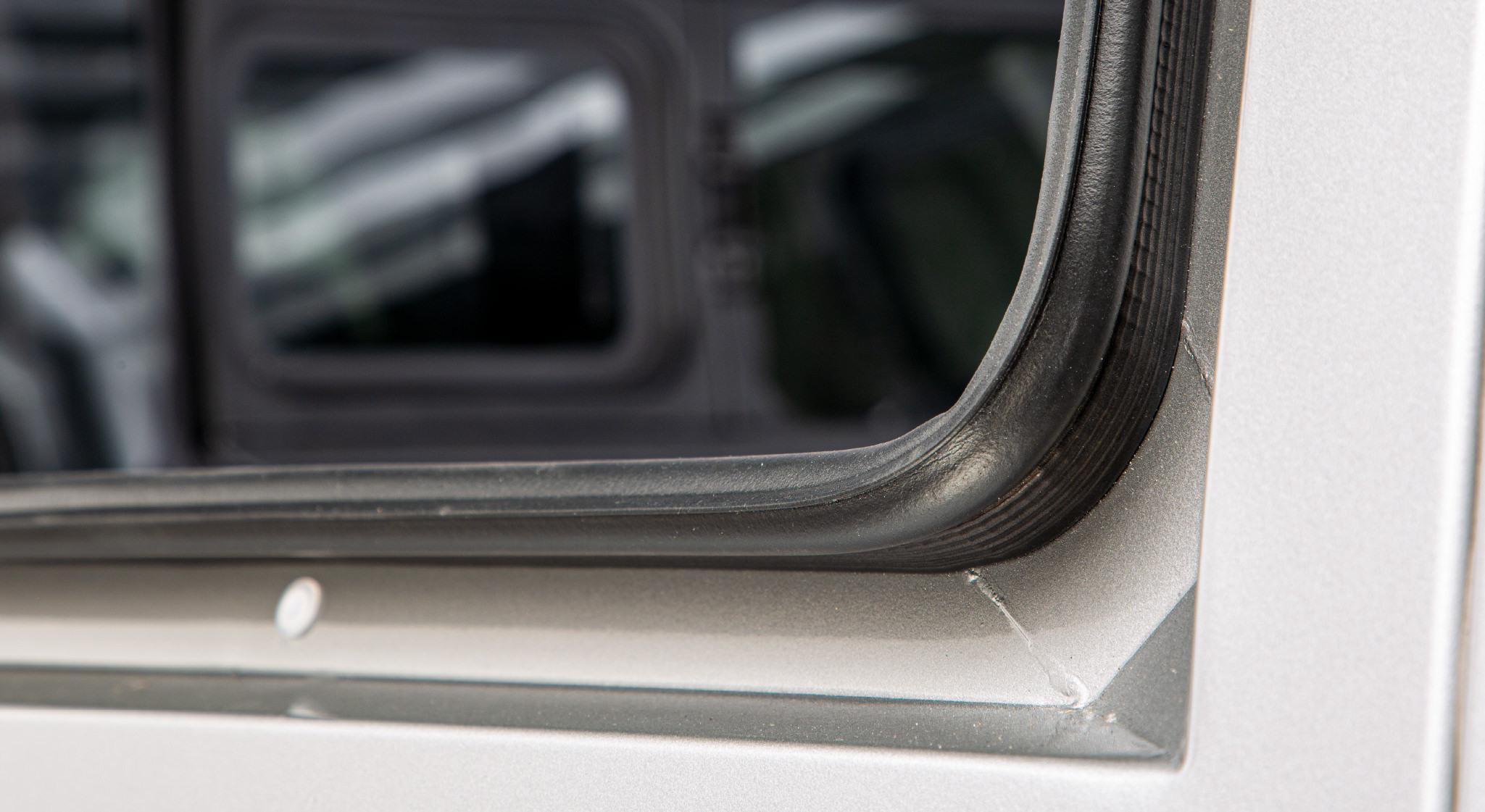

No need for a rain check.

The EVOc utilizes an innovative sealing method that when properly installed makes the SmartCap weatherproof. Come rain, snow, high winds or freezing temperatures—your cap will remain watertight and your cargo will stay dry.

Gasket
Smartcap truck attachment 1

Need to haul taller loads? SmartCap is off and running.

The EVOc lets you easily convert your commercial rig to a conventional pickup. This SmartCap can be removed in under 15 minutes, giving you the ability to haul taller loads. Then when you're ready to get back to business, EVOc is back on in a snap!

Our filtered air vent leaves other truck caps in the dust.

The Positive Pressure Air Vent filters fresh air into the cap at a greater velocity than the enclosed bed is capable of sucking it back in. This keeps road dust outside where it belongs, rather than on your cargo.

Smart Cap positive pressure vent 4

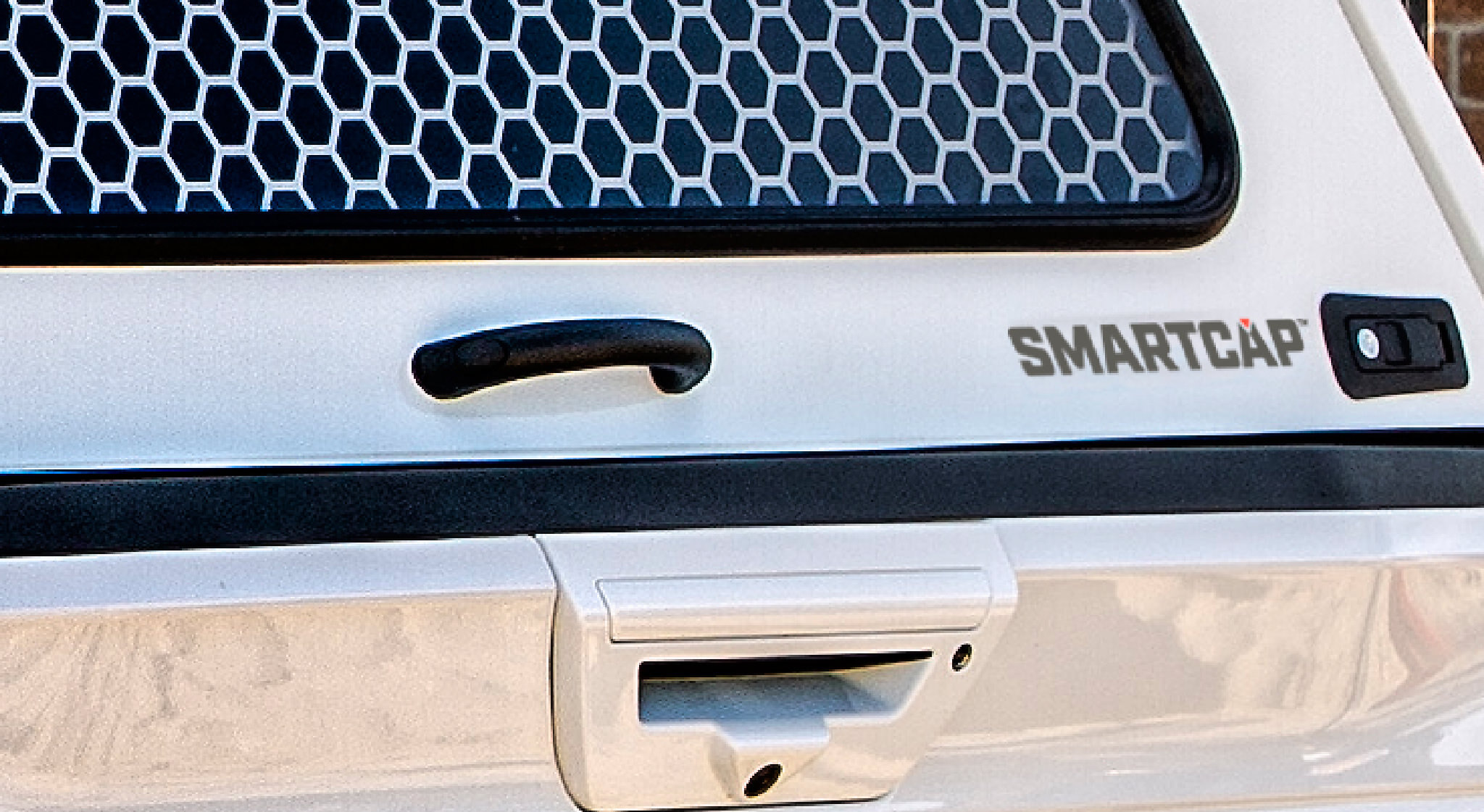

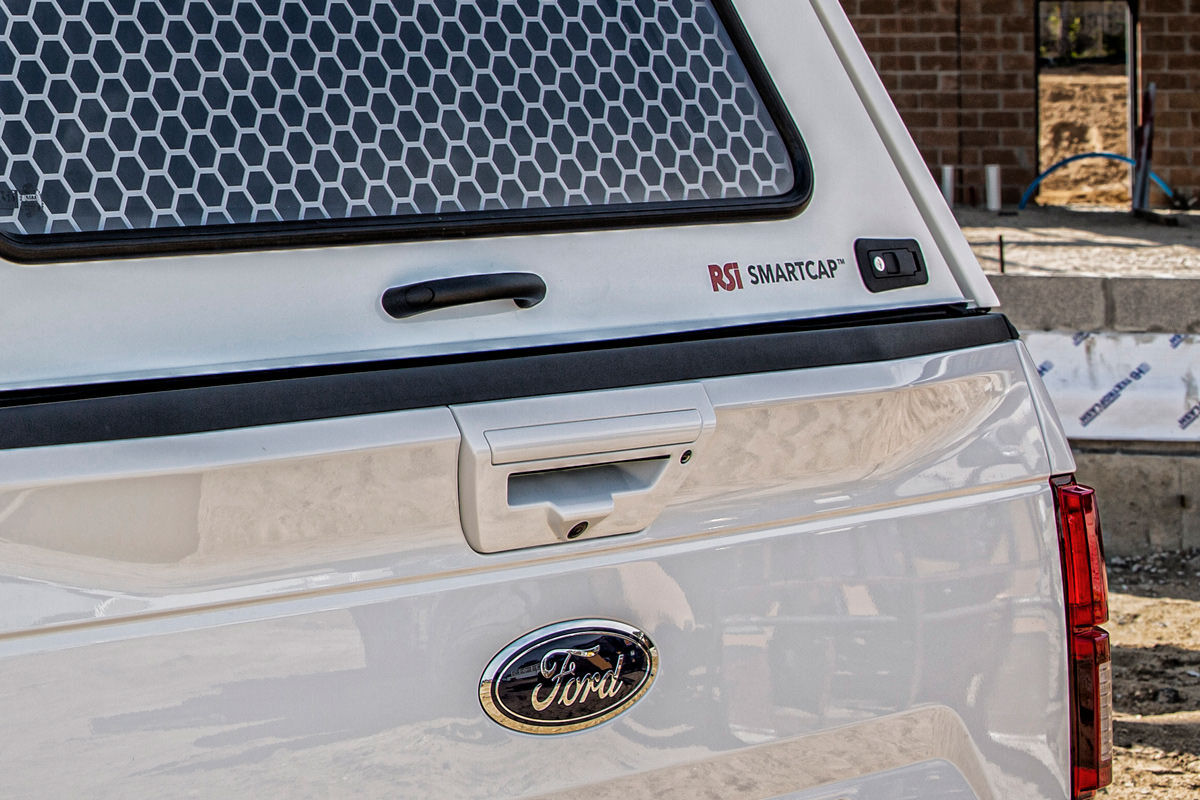

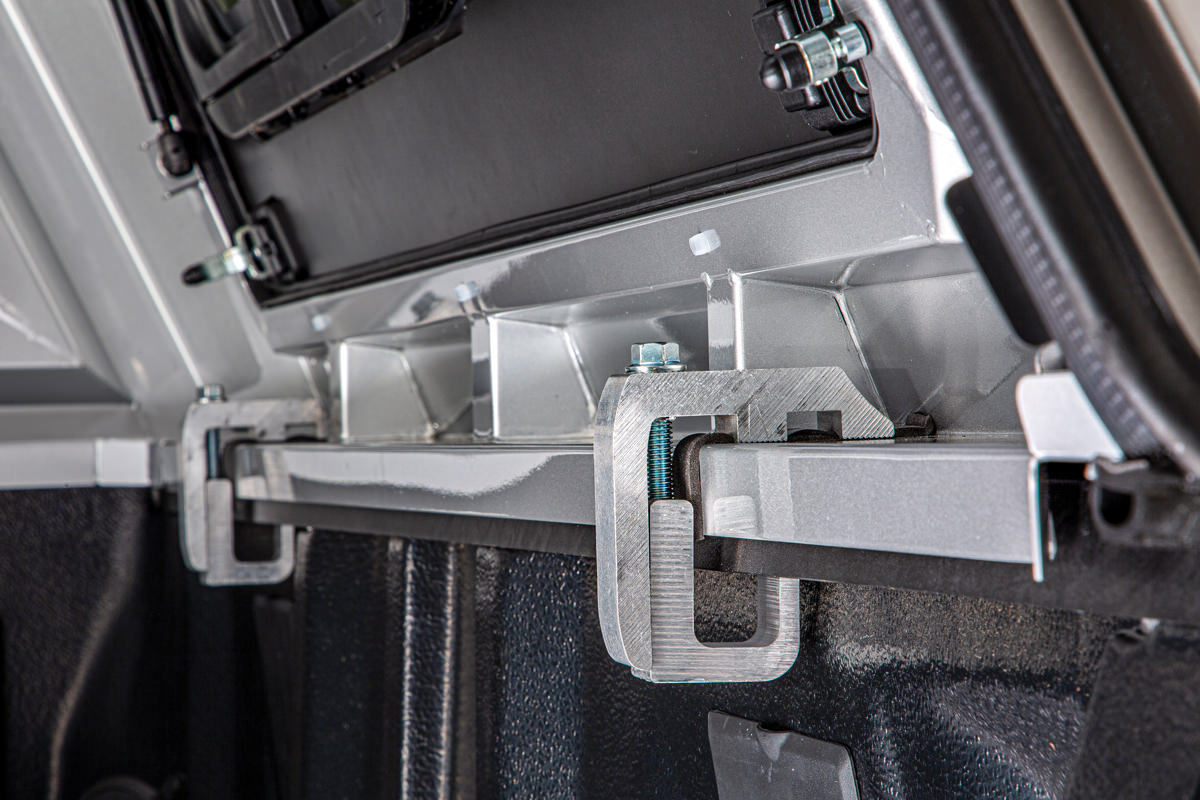

Smart Cap EV Oc Perfect Fit

Perfectly fit.

Our design team strictly adheres to the manufacturers' approved fitment guidelines to ensure your SmartCap is perfectly fit to your late model Ford, GM, RAM or Toyota truck. When it comes to your commercial truck needs, we fit right in.

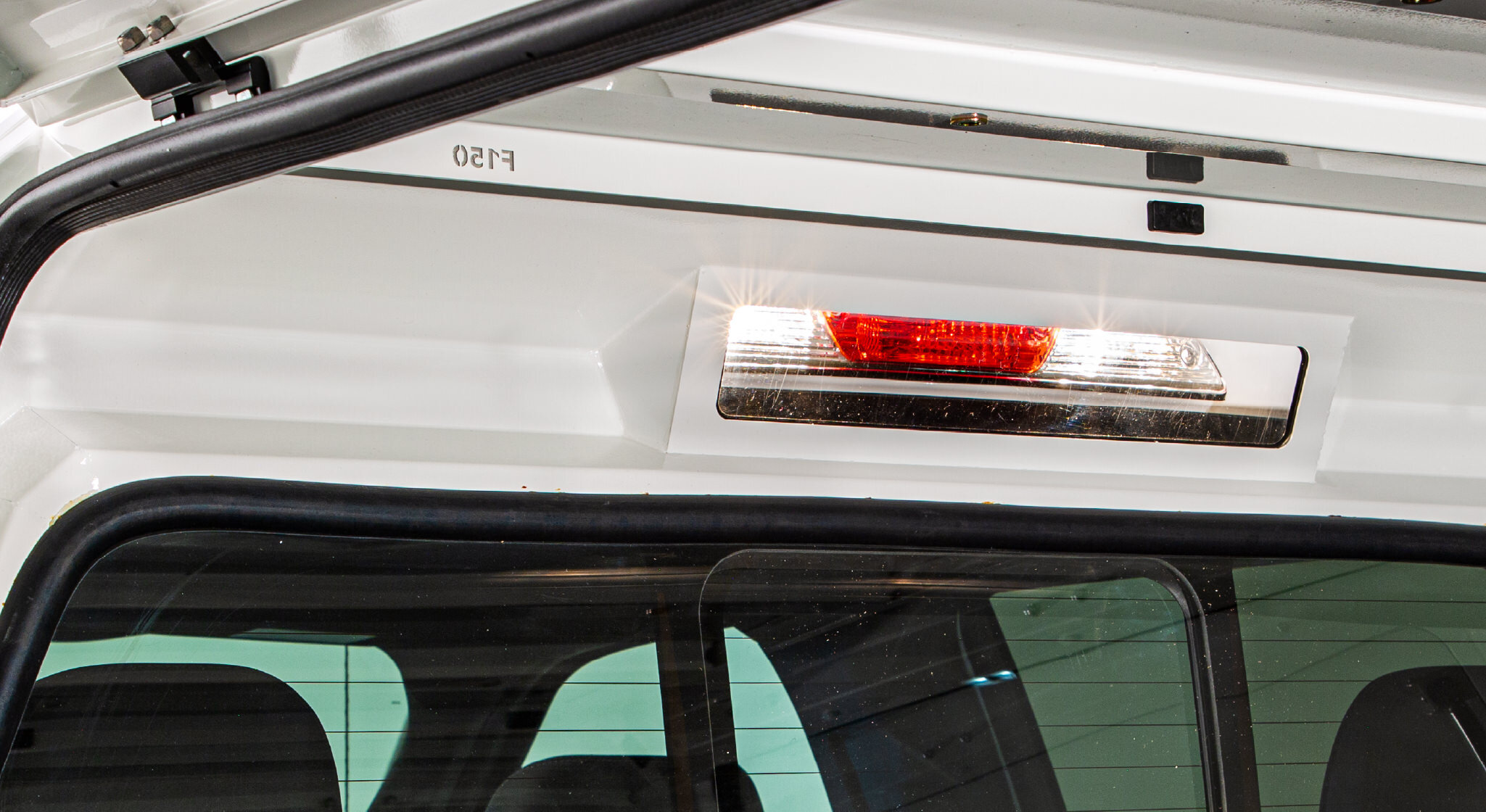

A portal of light.

For all full-size SmartCap applications, we've designed a portal window* that allows your truck's third brake light to illuminate the bed. Good thinking! *Not available on mid-size applications.

Portal Window EV Oc
Smart Cap roof rails 1

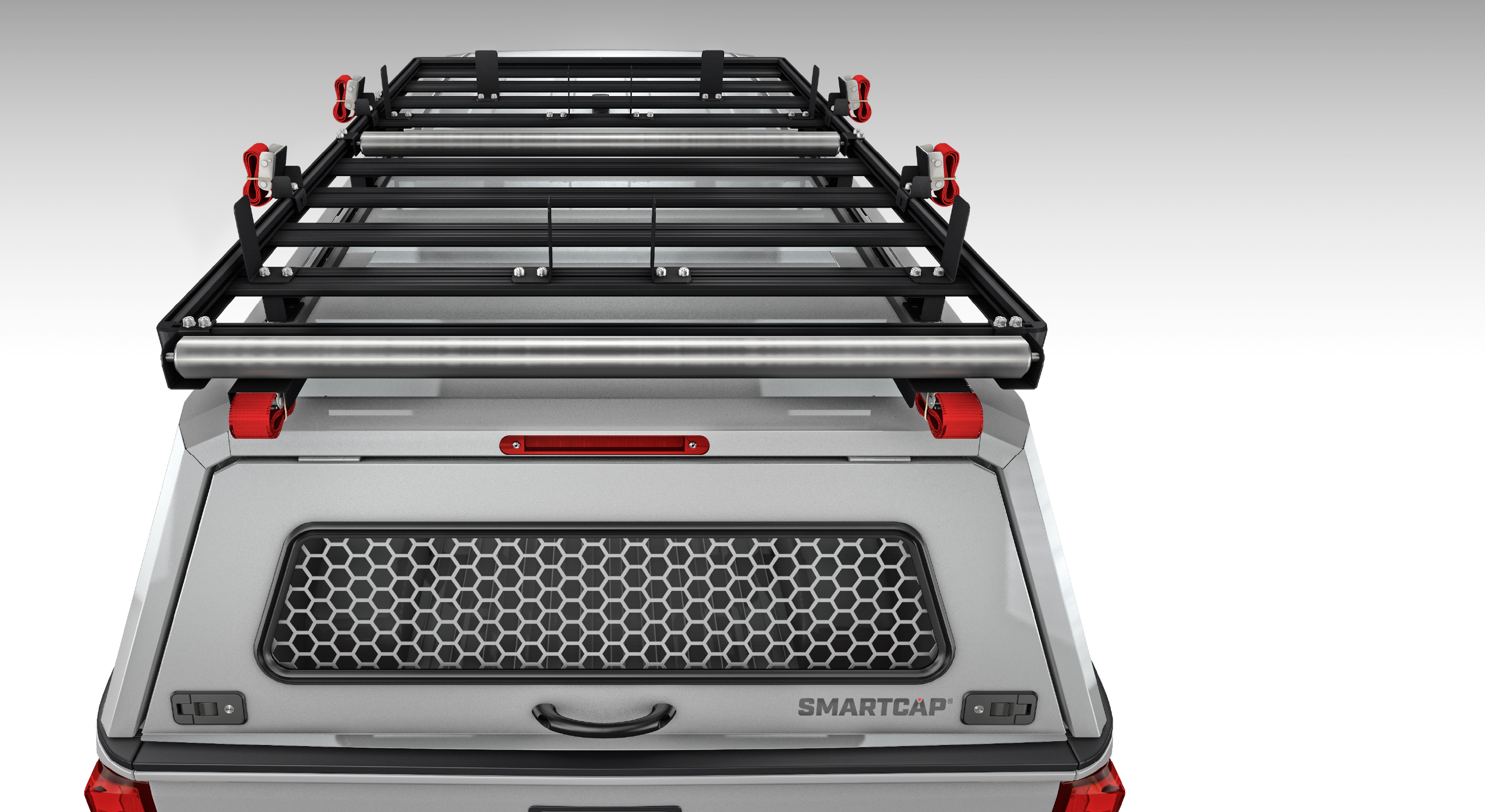

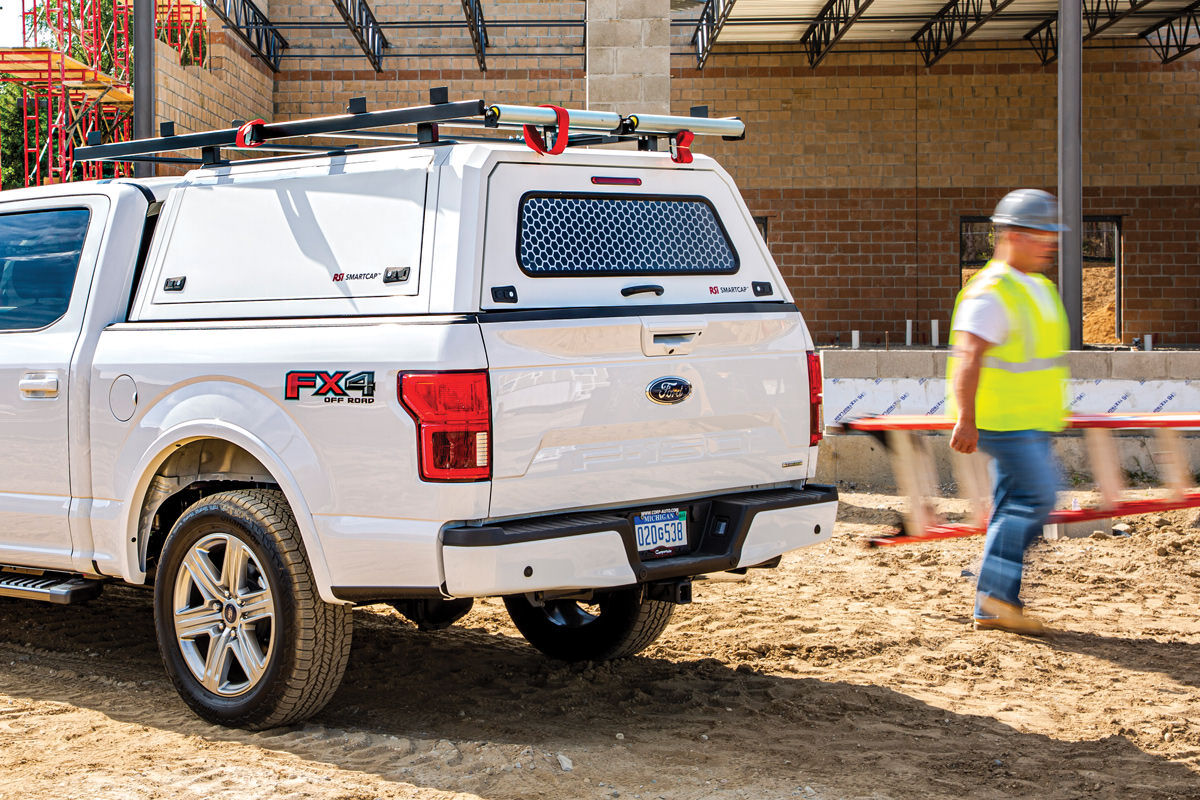

Mount up.

Sleekly designed into the top of the SmartCap, our integrated Roof Rails allow you to utilize other Components for mounting rooftop carriers, signage, ladders—whatever your business requires. Plus, if you already own a rack system, no problem. SmartCap's Roof Rails are universally designed to mount just about anything.

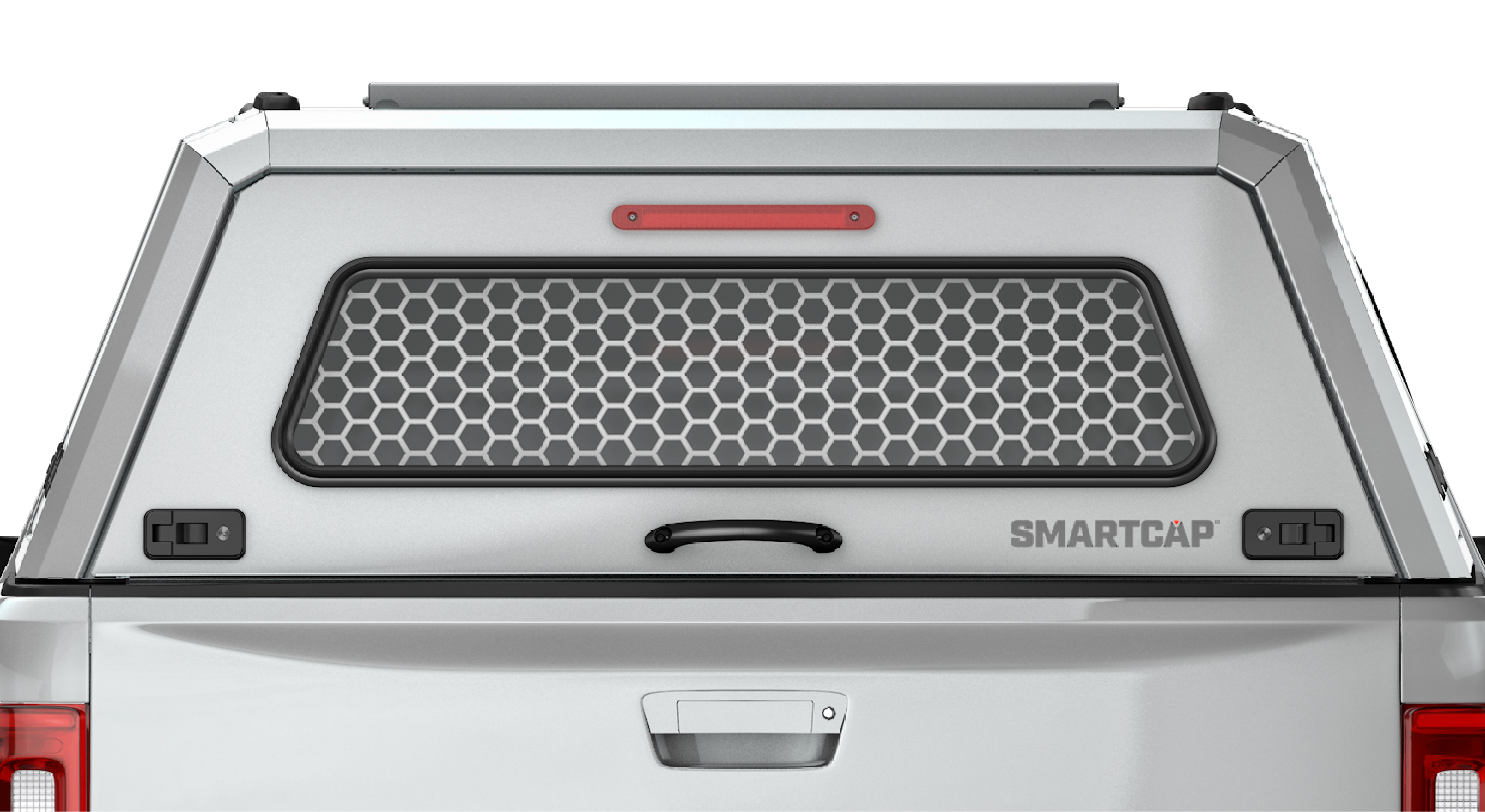

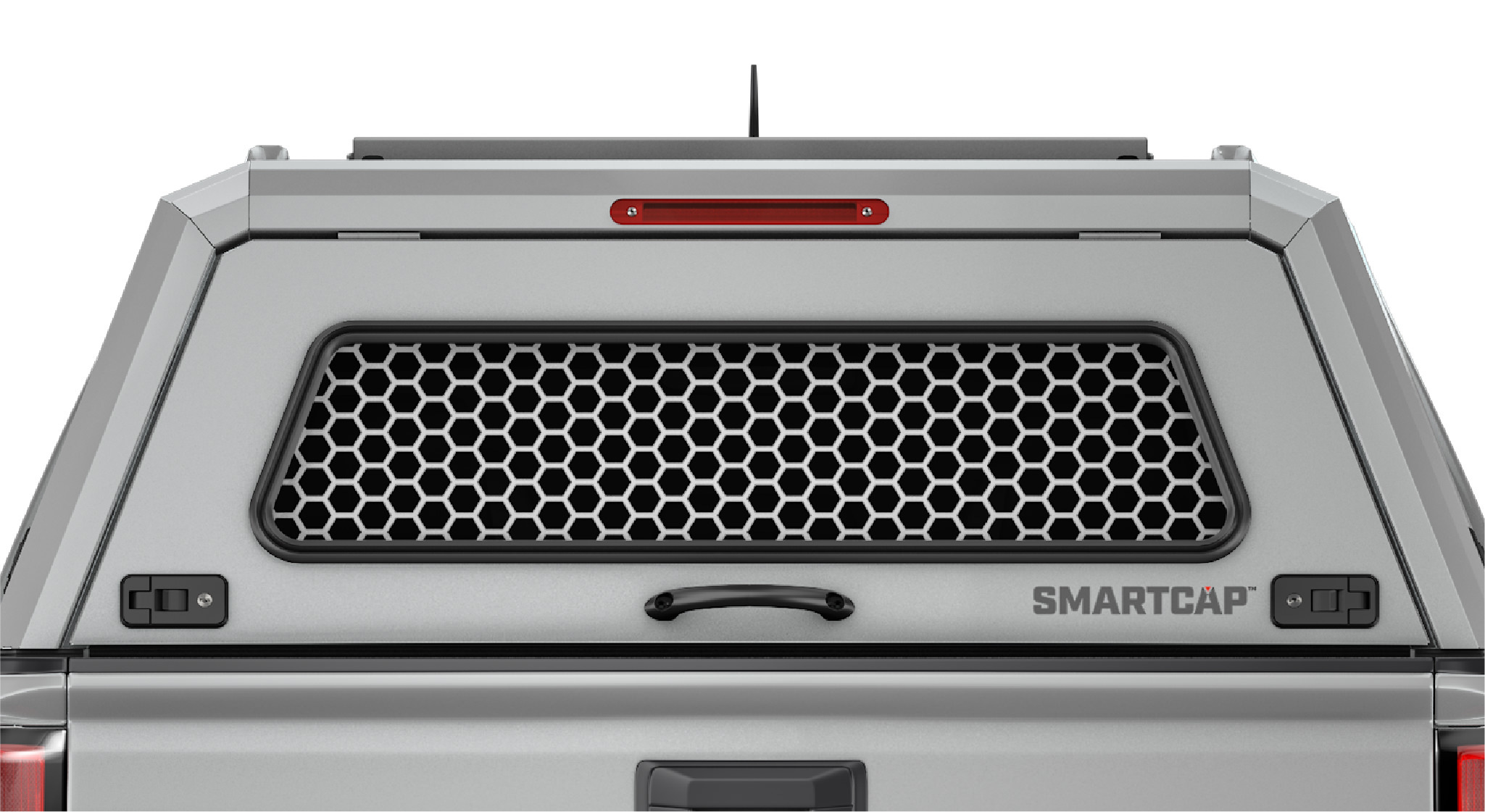

Will brake for hippos.

SmartCap EVOc incorporates a high-mounted third brake light that's sure to help tailgaters keep their distance. Plus, you never know when you need to brake for hippos.

Smart Cap EV Oc Third Brake Light
Smart Cap EV Oc 3 Year

Three year warranty.

We provide a 3-year comprehensive warranty on all SmartCap parts and workmanship. Customer satisfaction is guaranteed.
